Description
- Sarv manufactures a complete range of high precision wheel alignment turn plates designed to improve accuracy and repeatability in wheel alignment measurements. Turn plates are essential for alignment procedures because they allow controlled wheel rotation while caster, camber, and steering angles are measured.
- This SARV Mechanical Turn Table is designed specifically for passenger car wheel alignment. It is free-floating with 360-degree movement in all directions, achieved through steel balls housed in a plastic cage. This low-friction design supports smooth wheel rotation and stable positioning during alignment operations.
- The turn plate is manufactured from heavy-duty steel sheet and finished with a red powder-coated surface treatment for corrosion resistance and extended service life. For workshop stability, it includes a dual pin locking system that keeps the slip plate zeroed and stable while the vehicle drives onto the plate and when the turn plates are not in use.
- The unit is equipped with a built-in handle for easy carriage and an auto-centering design to support correct wheel positioning. A clear and easy-to-read scale (0–60 degrees left and right) helps technicians measure caster, camber, and steering alignment accurately.
- With a 1000 kg (1 ton) load capacity per plate, this Mechanical Turn Table is suitable for passenger cars and professional wheel alignment bays.
Technical Specifications
Capacity: 1000 kg each (1 ton per plate)
Scale Range: ±0° to 60°
Slip Plate Diameter: 310 mm (12”)

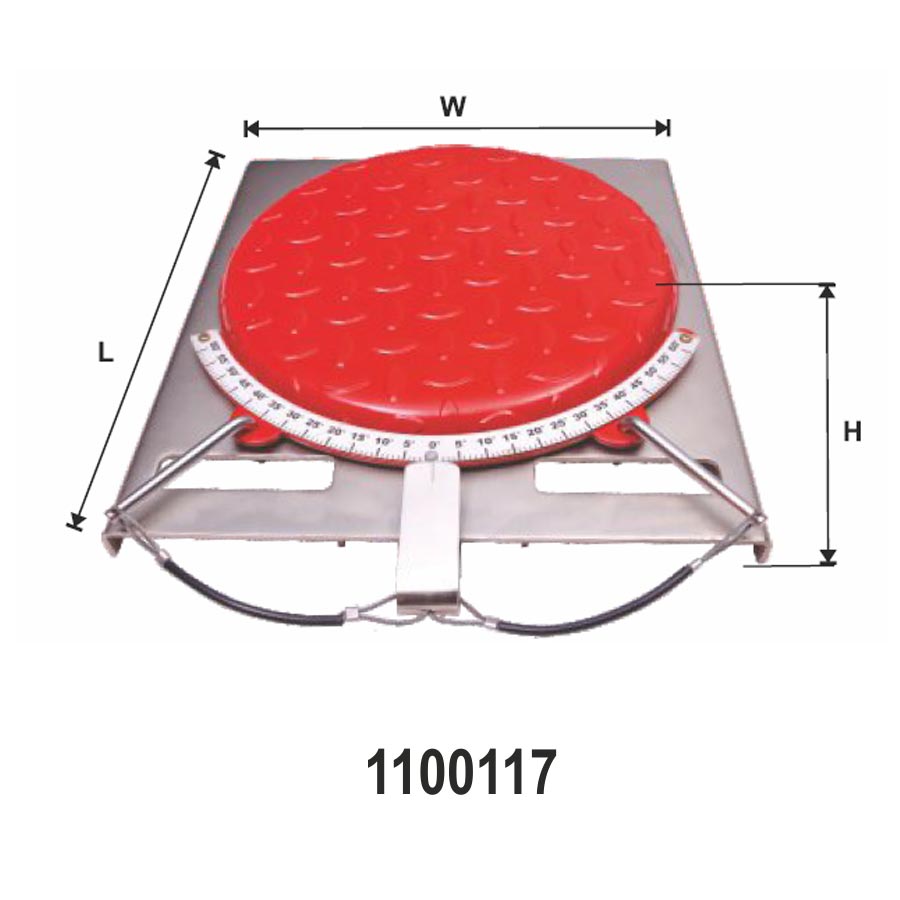

Size: L-380 mm × W-350 mm × H-45 mm
Top Plate Diameter: 310 mm
Weight: 9.750 kg
Material: Heavy-duty steel sheet
Ball System: Steel balls (Ø15 mm) in plastic cage
Finish: Red powder coated (anti-rust)
Extra Features: Dual pin lock, built-in handle, auto-centering design
Packing Details
Box Size: 43x37x12cm
No. of Pcs/Box: 2 Pcs
Gross Weight: 19.400kg
Export Markets
Sarv supplies automotive tools and accessories to global markets including USA, UK, Europe, Middle East, Asia, Africa, Japan, South America, and other international regions.
Shipping & Logistics
Export-ready packing suitable for sea and air freight
Clearly labeled cartons for easy handling and inventory control
Bulk shipment options available for distributors and fleet buyers
Global exports to 70+ countries
Custom packing and private labeling available on request
