Description

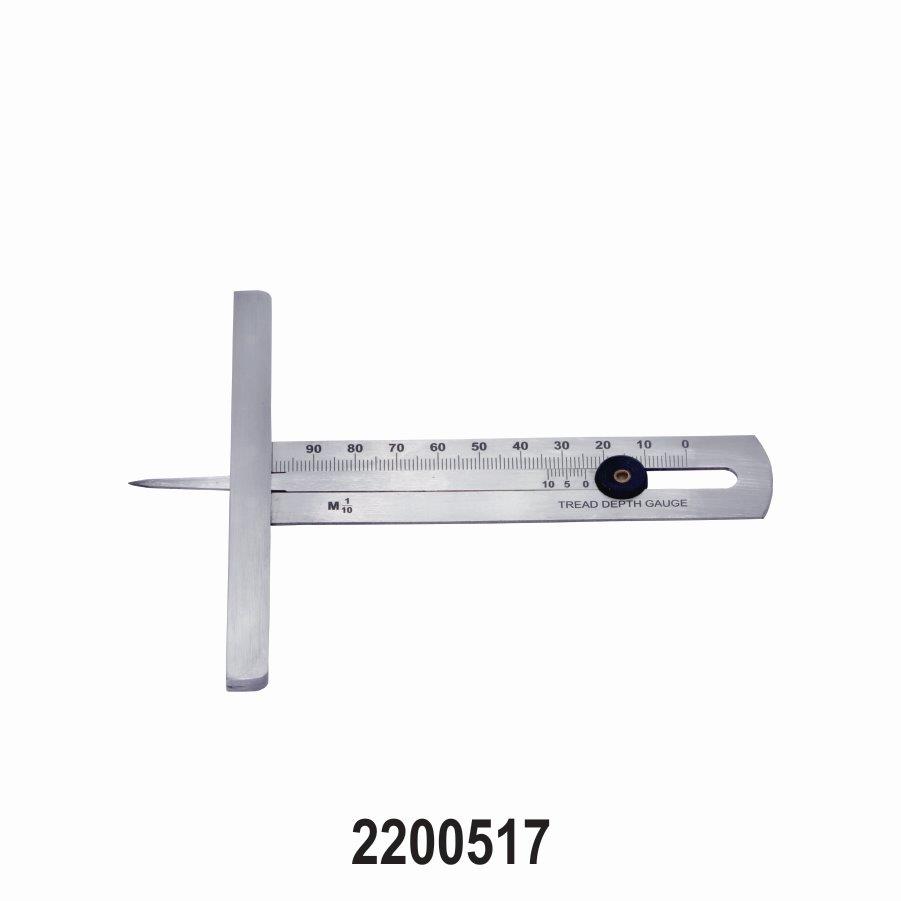

- This stainless steel Tire Tread Depth Gauge is built for accurate tread measurement on heavy-duty truck and OTR tires, where deeper tread patterns require a larger measuring range.
- The gauge measures 0–90 mm, making it suitable for deep-groove tires and rugged tread blocks commonly found on commercial vehicles and off-highway equipment.
- A vernier scale with 0.1 mm (1/10 mm) resolution supports precision readings when detailed inspection is needed for maintenance decisions.
- The integrated locking system allows technicians to freeze the measurement, making it easier to note values without losing the position in the tread groove.
- Manufactured from high-quality rust-proof stainless steel, it is designed to perform reliably in workshops, tire yards, and outdoor inspection conditions.
- Use it across multiple tread points to track wear patterns, spot uneven wear, and support rotation, retreading, or replacement planning.
Technical Specifications
Measuring Range: 0–90 mm
Main Scale: 1 mm graduations
Vernier Resolution: 0.1 mm (1/10 mm)
Material: Rust-proof stainless steel
Weight: 85 g
Packaging Details
Box Size: 34 × 29 × 13 cm
Quantity per Box: 100 pcs
Gross Weight (Box): 9.100 kg
Export Markets
Sarv supplies automotive tools and accessories to global markets including USA, UK, Europe, Middle East, Asia, Africa, Japan, South America, and other international regions.
Shipping & Logistics
Export-ready packing suitable for sea and air freight
Clearly labeled cartons for easy handling and inventory control
Bulk shipment options available for distributors and fleet buyers
Global exports to 70+ countries
Custom packing and private labeling available on request
Frequently Asked Questions (FAQ)
What is this Tire Tread Depth Gauge used for?
It measures tread depth on truck and OTR tires to help evaluate wear and serviceability.
What is the measuring range?
The gauge measures from 0 to 90 mm.
How precise is the gauge?
It includes a vernier scale with 0.1 mm resolution and a main scale marked in 1 mm graduations.
What is the locking system for?
The lock freezes the reading so you can record it accurately without the gauge shifting.
What material is it made from?
It is made from high-quality rust-proof stainless steel.
Is it suitable for OTR tires?
Yes, it is suitable for OTR tires as well as heavy-duty truck tires.
How should I take tread depth measurements on truck tires?
Measure multiple grooves across the tread width and compare readings to check for uneven wear.
Can it help with retread decisions?
Yes, consistent tread depth tracking can support maintenance planning and retread evaluation.
