Description

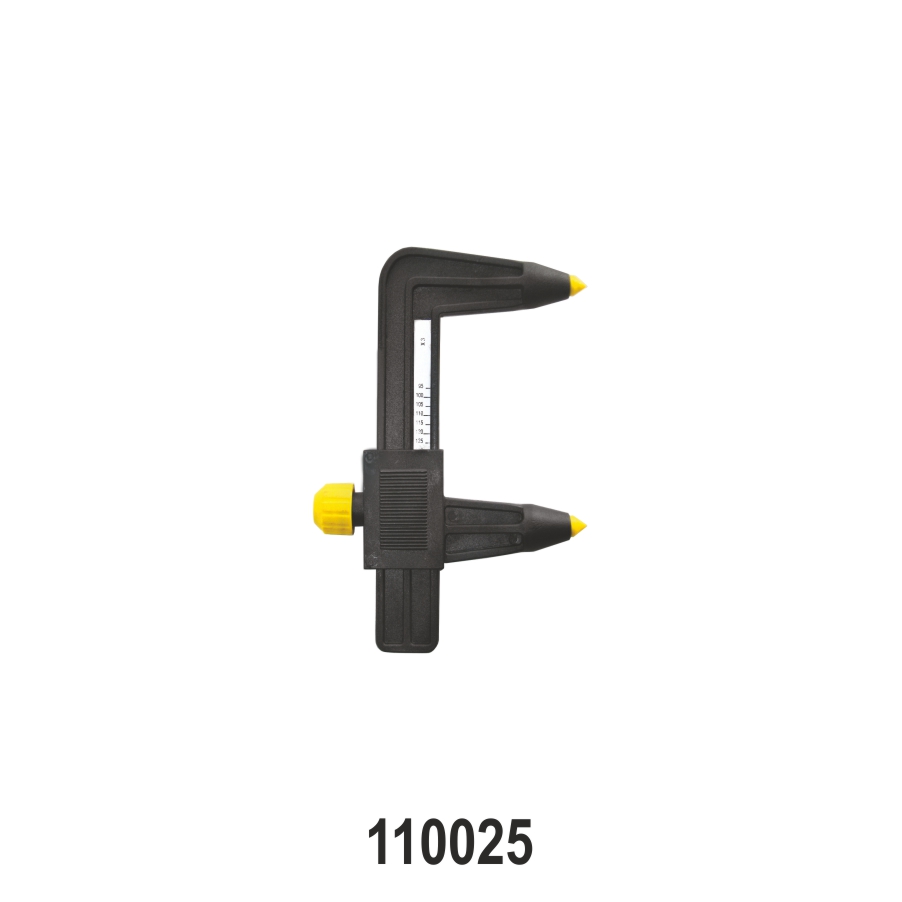

- The Sarv PCD Measuring Tool (Code: 110025) is a precision pitch circle diameter gauge designed to accurately measure 3, 4, and 5 lug bolt patterns on wheel rims. This tool is essential for tire shops, automotive workshops, and wheel distributors who need to quickly and accurately determine bolt pattern specifications.
- The tool measures bolt circle diameters ranging from 95 mm to 160 mm, making it suitable for a wide range of passenger vehicle wheels. It works effectively on both steel and alloy rims, providing reliable results for various applications.
- Operation is simple and efficient. The technician inserts the gauge legs into adjacent lug holes and reads the measurement directly from the scale. The tool displays both inch and metric measurements, ensuring compatibility with different market standards and vehicle specifications.
- Constructed from PA6 glass-filled material, this PCD Measuring Tool offers strength, durability, and resistance to daily workshop wear. The built-in nut locking feature ensures stable positioning during measurement, improving accuracy and ease of use.
- This tool is designed for quick verification of bolt patterns, reducing errors during wheel replacement, wheel upgrades, or balancing operations.
Technical Specifications
Material: PA6 Glass Filled
Measurement Range: 95 mm to 160 mm
Display: Inch and Metric Scales
Weight: 120 g
Packing Details
Box Size: 46 × 33 × 27 cm
Pieces per Box: 100 pcs
Gross Weight: 14.500 kg
Export Markets
Sarv supplies automotive tools and accessories to global markets including USA, UK, Europe, Middle East, Asia, Africa, Japan, South America, and other international regions.
Shipping & Logistics
Export-ready packing suitable for sea and air freight
Clearly labeled cartons for easy handling and inventory control
Bulk shipment options available for distributors and fleet buyers
Global exports to 70+ countries
Custom packing and private labeling available on request
Frequently Asked Questions (FAQ)
What is a PCD Measuring Tool used for?
A PCD Measuring Tool is used to measure the pitch circle diameter (bolt pattern) of wheel rims.
What bolt patterns does this tool measure?
It measures 3-lug, 4-lug, and 5-lug bolt patterns.
What is the measurement range?
The tool measures bolt circle diameters from 95 mm to 160 mm.
Does it display both inch and metric measurements?
Yes. The tool displays both inch and metric scale readings.
Is it suitable for alloy wheels?
Yes. It can be used on both steel and alloy wheels.
What material is the tool made from?
It is made from durable PA6 glass-filled material.
What is the nut locking feature used for?
The nut locking feature stabilizes the tool during measurement for improved accuracy.
Is this tool suitable for professional workshop use?
Yes. It is designed for tire shops, automotive service centers, and wheel distributors.
